Dash Werks gauge panel V.3 for 1972-1974 Dodge D and W series, and Ramcharger/Trailduster. Can be made to accommodate any traditional aftermarket gauges, The One Gauge screens, Holley Pro Dash and anything else to your specific need as long as it fits under 5 inches tall. (I have an untested layout for the Pro Dash 12.3 screen that extends the bottom of this panel down about 1 inch)

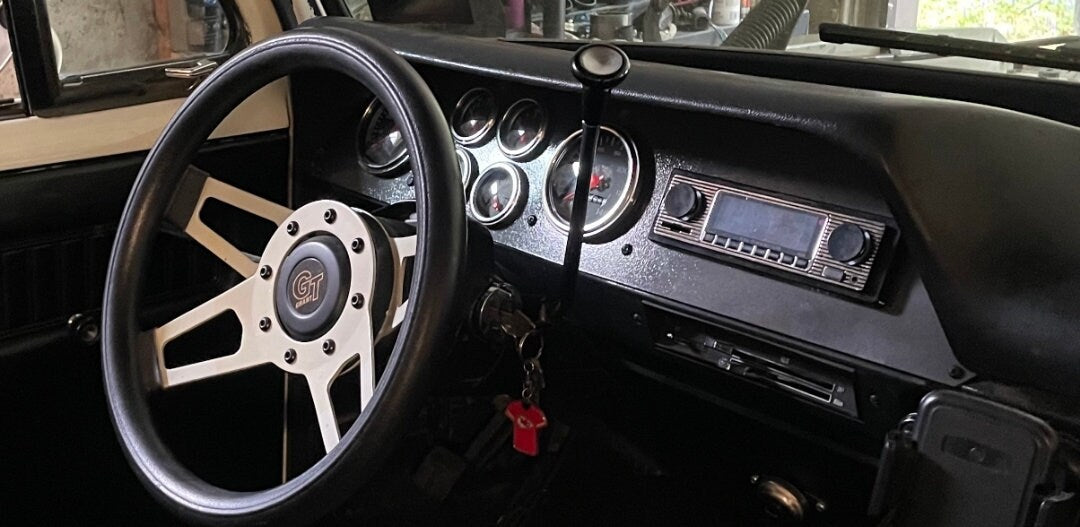

Single din and double din radios fit an OEM style layout without a tach and 5" speedometer. Single din fits with an OEM style layout and 3-3/8" tachometer and speedometer. Horizontal space is limited on the 72-74 layout.

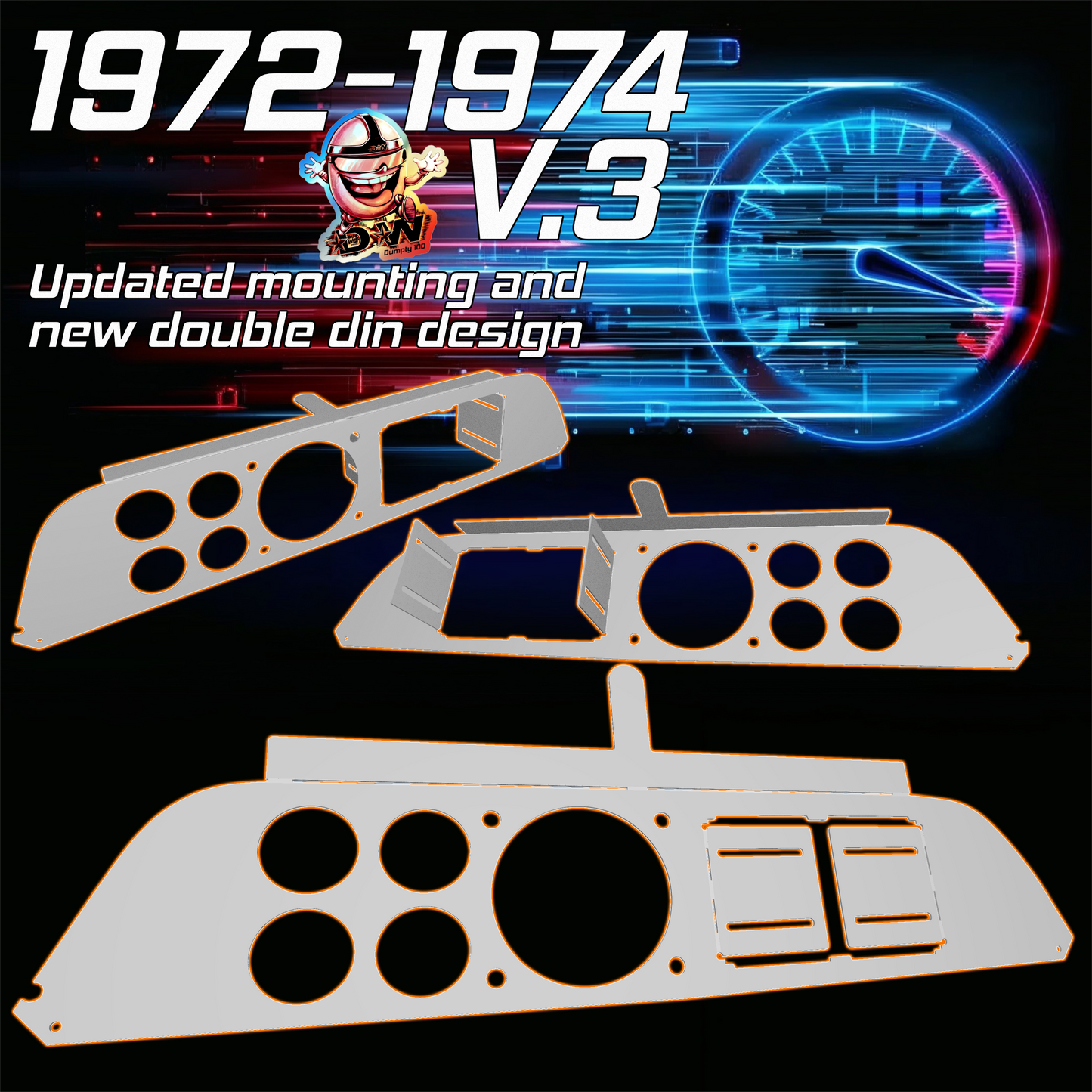

V.3 (December 2024) changes the top section and relief slots to allow bending by hand. The top bends back as far as needed to allow the strap to reach the dashboard for mounting. This also adds rigidity to the dash panel overall.
Brushed Aluminum
0.063" and 0.125" Made to order aluminum
Galvanized Steel
0.036" Made to order galvanized steel option intended for test fitment of gauges! It is at half the thickness and half the cost of the brushed aluminum panels.
Stainless Steel
0.60" Made to order stainless steel option for a cleaner look than brushed aluminum.
Back Plates

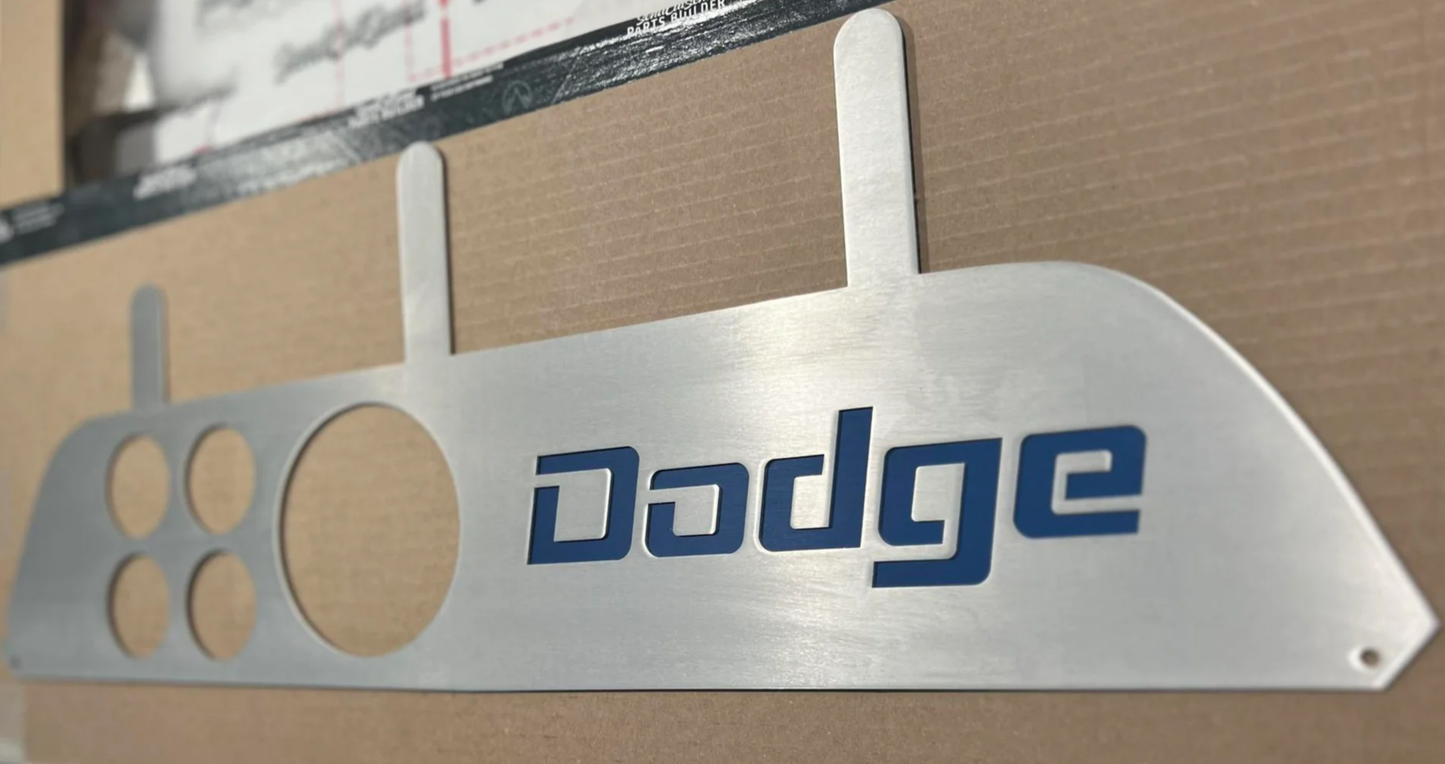

In place of radios, or in some cases, custom wording or other designs can be added, such as the "Dodge" logo, the Mopar M, and flags for example. A backing plate can be made in an anodized aluminum finish, or out of brass, copper, stainless steel, carbon fiber, colored acrylic, or plain ol steel for painting or vinyl wrapping. Pricing will vary based on material, contact me to discuss ideas and quotes.
Notes
- This is for aftermarket gauge use and not to be used with the factory gauge pod, or used as an overlay.
- Removal of the factory gauge pod is required, and electrical wiring is required.
- Single DIN radios should come with an installation cage, OD at 182mm X 55mm.
-
Double DIN radios will install into my ISO mounting solution
- Dash Werks adapter for the factory gauge harness available (very soon)
-
If ordering a Custom Layout, please contact me after purchasing to discuss the details of your custom layout. I will send an email if I do not receive a message or email first. If I do not receive a response within 2 weeks, I will send a blank panel.
Sales on Blank Panels are final.
TERMS OF SERVICE
Chat with me on the lower right, or email for questions and after order details. dwgaugepanels@gmail.com
Material |
Decimal |
Fraction |
Gauge |
Metric |
5052 Aluminum |
0.063" |
~1/16" |
14 |
1.6mm |
5052 Aluminum |
0.125" |
~1/8" |
8 |
3.2mm |
G90 Galvanized Steel |
0.036" |
~1/32" |
22 |
0.86mm |
304 Stainless Steel |
0.030" |
~1/16" |
16 |
1.5mm |
Shipping
Shipping
USA - Free shipping via fulfillment by SendCutSend.
Canada - $20 USD flat rate via fulfillment by SendCutSend (customs fees)
Shipping not available outside the US or Canada until SendCutSend updates international shipping policies.
Share







Wasn’t very impressed went to install it and none of the tabs lined up with any of the gauge panel mounts in the truck
On my listing I state that this panel takes a bit of work to install and gain the desired fitment. This is because each truck is unique due to age. This is not a factory replacement part. If there are questions about installing this panel, please send a message or email me at dwgaugepanels@gmail.com.
This is great I am so appreciative of your business, thanks again
